/ OUR TECHNOLOGY

The Fumiable Engineering System

Controlled material behavior for regulated commodity trade

Fumiable is engineered to control gas permeability, moisture exchange, and structural integrity at the packaging level.

Instead of adapting treatment protocols around sack limitations, the Fumiable system redesigns the sack to meet modern operational and regulatory requirements.

Technology Overview

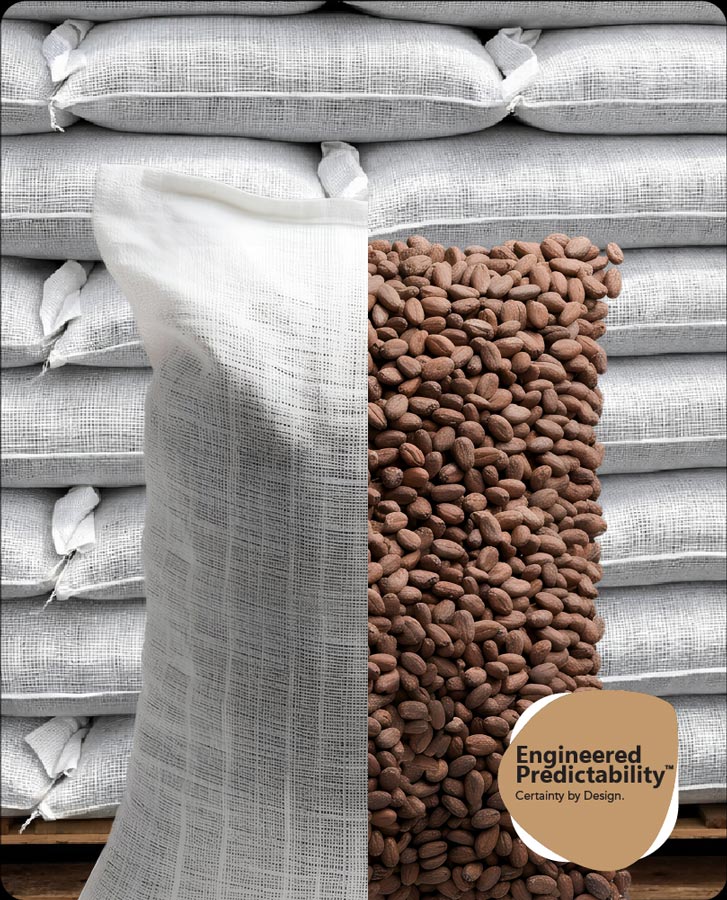

Fumiable® Engineered Predictability | Certainty by Design

Permeability Optimized

Fumiable® is engineered to enable controlled moisture exchange. The woven structure allows excess internal moisture to dissipate, reducing condensation risk and limiting conditions that promote mould growth or quality degradation. At the same time, the fabric permits gradual equilibrium with external environmental conditions, reducing thermal and moisture gradients that can accelerate deterioration during storage and transit. Crucially, the open-weave architecture supports uniform fumigant diffusion. The interstitial void structure allows gas molecules to penetrate and circulate through stacked units without requiring secondary perforation or liner removal.

This enables:

• More predictable fumigant concentration profiles within palletized or containerized loads.
• Reduced risk of gas shadowing or localized underexposure.
• Improved compatibility with sulfuryl fluoride or other approved fumigants.
• Elimination of vapor-barrier obstruction commonly associated with laminated or coated sacks.

High Strength / Slip Resistance

Fumiable® is constructed from high-tenacity polypropylene yarns woven into a load-bearing matrix. The result is a fabric capable of withstanding rugged handling, stacking pressure, and mechanical stress without compromise.

Despite its porosity, the fabric maintains structural conformity to the commodity profile. The textured yarn surface enhances inter-bag friction, improving stack stability during warehousing and container transport.

The mechanical strength allows handling protocols consistent with traditional woven sacks, including stacking with metal props or standard warehouse systems without requiring operational modification.

Non-toxic Mono-material construction

Fumiable® is manufactured entirely from polypropylene. Its functional characteristics arise from engineered weave geometry rather than chemical additives.

The mono-material design eliminates concerns associated with natural fibers or compounded additives. No secondary strengthening agents, mineral oil contaminants, or hybrid fiber blends are required to achieve performance.

Material purity supports regulatory-sensitive export applications where contamination control is critical.

Flexibility in Design

Fumiable® is a configurable woven technology platform rather than a fixed-format bag.

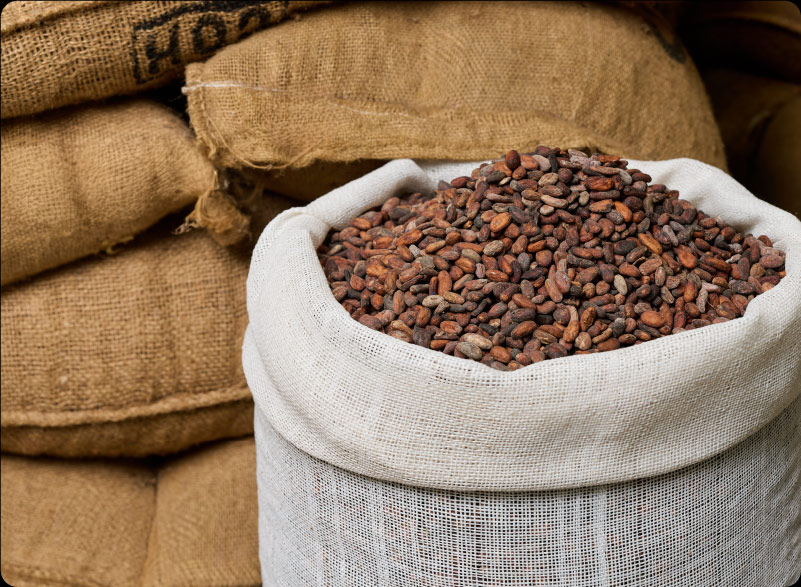

It can be produced in conventional 65kg sack formats for cocoa and coffee, or scaled to larger formats such as 1,000 kg FIBC systems. The weave density can be engineered (e.g., 8×8, 8×9, 9×9, 10×10) to match commodity characteristics and fumigation requirements.

Structural parameters are adjustable based on application, allowing permeability, strength, and load performance to be tuned without altering the core material.

/ MANUFACTURING OVERVIEW

From Polymer to Finished Sack

Polymer Formation

Polypropylene extrusion calibrated for structural consistency.

Tape Structuring

Material density engineered for controlled porosity.

Yarn Configuration

Twisted for strength and dimensional stability.

Circular Weaving

Tubular weave optimized for airflow and load distribution.

Edge Lamination & Finishing

Reinforced lamination ensures scalability and durability.

Technical Specification (Typical)

Fumiable® woven fabric was subjected to tensile and burst strength testing in accordance with internationally recognized textile standards to assess structural integrity under mechanical stress conditions representative of industrial handling and stacking environments.

Tensile Strength

Test Standard DIN EN ISO 13934-1:2013

Textiles – Tensile properties of fabrics

Part 1: Determination of maximum force and elongation at maximum force using the strip method.

Results

Orientation	Maximum Force (N)	Elongation at Maximum Force (%)
Longitudinal (Warp)	722.5N	29.8%
Transverse (Weft)	620.3N	8.6%

Burst Strength

Test Standard ISO 13939-1:2019
Textiles – Bursting properties of fabrics using hydraulic method

Test Conditions

Bursting tester	Testex TF 142B
Number of specimen	5
Specimen condition	Conditioned prior to testing
Test area	7.3 cm²
Mean bursting height	24.2 mm

Individual Results

Specimen	Burst strength (kPa)
1	1411.4 kPa
2	1366.3 kPa
3	1391.6 kPa
4	1366.4 kPa
5	1349.9 kPa
Average burst strength	1377.1 kPa

Fumiable is an engineering-led packaging company developing a patented polypropylene woven jute-replacement system for regulated commodity trade, designed for controlled permeability, structural durability, and measurable performance.
